Velotric – Discover M

Mid-Drive Commuter Ebike Powered by VeloCore™ System

Powered by the VeloCore™ mid-drive system, Discover M delivers a more natural electric bike ride with improved balance, control, and efficiency.

Specification

SIZE GUIDE

Bike Size: Regular / Large

User Height Range

R：5’2”~5’11” L：5’9”~6’7”
（With Suspension Seatpost）
R：4’11”~5’9” L：5’6”~6’4”
（Without Suspension Seatpost）

FRAMESET

Frame: Triple-Butted Aluminum Alloy

Fork: Air suspension 80mm Travel with Lock-out

ELECTRONICS

Motor: 48V, 500W, 960W(Peak Power) ,100Nm

Battery: 48V, 16.7Ah (801.6Wh), IPX7, Certificated by UL 2271

Cell: Samsung/LG 21700 cell, Certificated by UL2580

Charger: 48V, 3A Fast Charger

Sensor: Torque and Cadence Sensor

Display: 3.5″ Full color, High brightness, Bluetooth, NFC, Adjustable Angle

USB Port: USB Type-C phone Charge

Throttle: Trigger-control, Removable

Pedal Assist: 4 Riding Modes +Auto Mode/Ride Tuning

Walk Mode: 2.9MPH/ Walk & Hold

Front Light: 500LM High-output Integrated LED, Adjustable Angle

Rear Light: Braking Indicator, Turn Signal, Rear Light Steady/Flash, Integrated with Rear Rack

Water Resistant: IPX6

App: App OTA

Anti-theft: Apple Find My & Google’s Find Hub，NFC Card Unlock

SPEED & RANGE

Max Speed (Defaul): 20MPH

Max Speed Adjustable Range: 12~28MPH

Ebike Class: 1/2/3

Pedal Assist Range: 95 Miles

Throttle Range: 70 Miles

DRIVETRAIN

Chainrings: 46T Narrow-Wide Chainring

Crankset: Aluminum Alloy, 170mm

Cassette: 9-speed,11-46T

Rear Derailleur: SHIMANO Cues, 9-speed

Shift Lever: SHIMANO Cues, 9-speed

Chain: KMC eGlide 9-speed

BRAKE

Brake: Tektro Hydraulic Disc Brake

Rotors: 180mm Front/180mm Rear

Brake Levers: Aluminum Alloy, with Power Cutoff

WHEEL

Rims: Aluminum Alloy

Front Hub: NOVATEC Aluminum Alloy, 15x110mm Thru-axle

Tire: KENDA 27.5×2.4″ eBike Puncture Resistant Tires

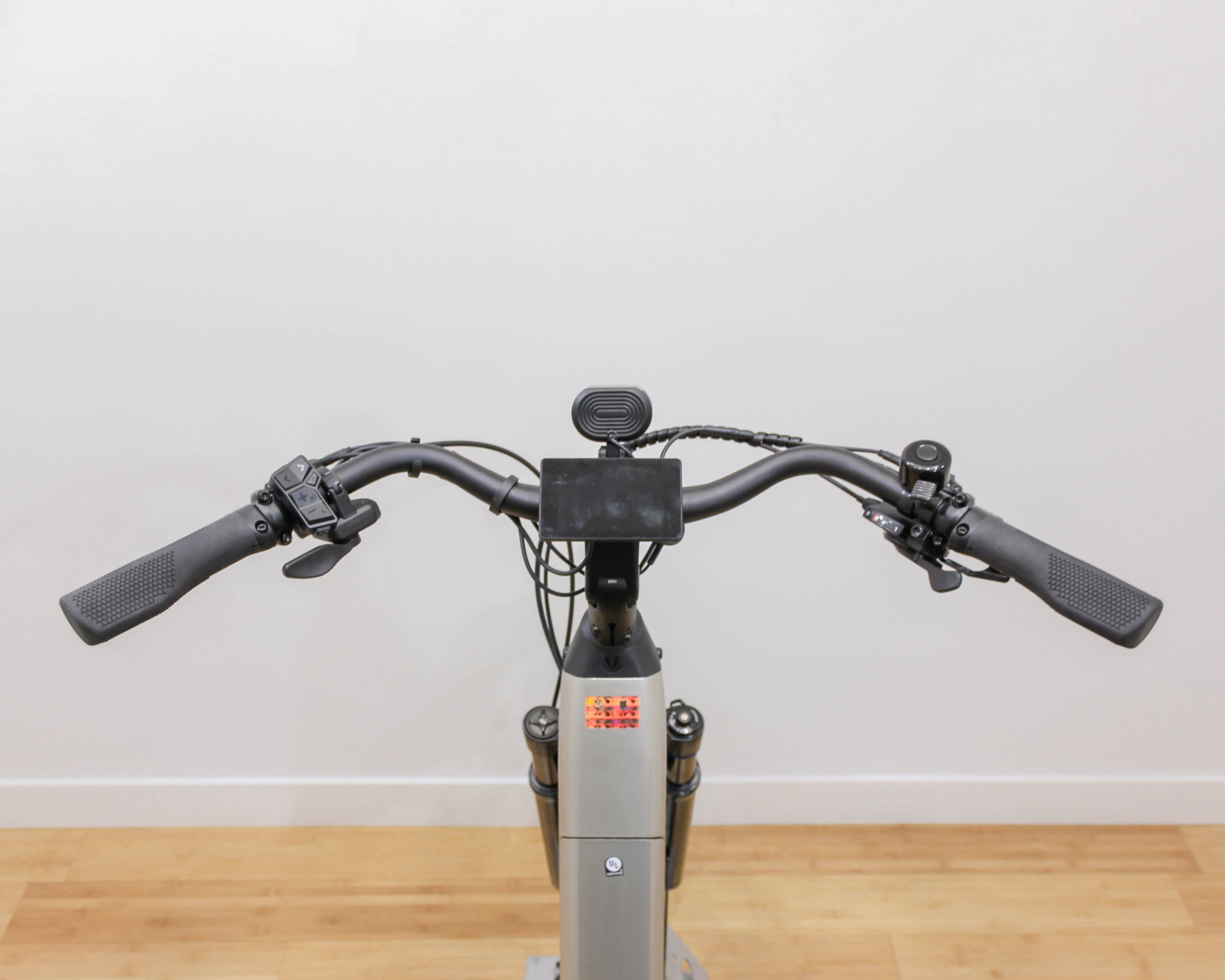

COCKPIT

Handlebar: Aluminum Alloy, Ф31.8mm, 680mm(R)/700mm(L)

Grips: Durable Ergonomic Grips, Lockable

Stem: Adjustable, Aluminum Alloy, ф31.8mm, 60mm Length

Saddle: VELOTRIC Comfort Ergonomic Seat

Seatpost: Aluminum Alloy, Ф30.9mm, Suspension

Clamp: Aluminum Alloy, Quick Release

SUPPORTS

Fenders: Aluminum Alloy, Front and Rear Full Coverage

Rear Rack: MIK HD Compatible Alloy

Pedals: Plastic

Kickstand: Aluminum Alloy, Included, Rear Mount

WEIGHT & LOAD

Bike Weight: 60 lbs
*Weight does not include fenders, kickstands, or pedals.

Rear Rack Load Capacity: 66 lbs

Max Bike Load Capacity: 440 lbs

CERTIFICATION

UL Certification: UL2849 & UL2271

ISO Standard: ISO 4210

Geometry

Regular

Height: 5’2″~5’11”

Reach: 374mm

Handlebar Height: 1110mm

Wheelbase: 1113mm

Stand-Over Height: 399mm

Min Saddle Height: 838mm

Max Saddle Height: 995mm

Total Length: 1812mm

Large

Height: 5’9″~6’7″

Reach: 374mm

Handlebar Height: 1110mm

Wheelbase: 1113mm

Stand-Over Height: 388mm

Min Saddle Height: 910mm

Max Saddle Height: 1065mm

Total Length: 1812mm
