Electric bike with cargo rack

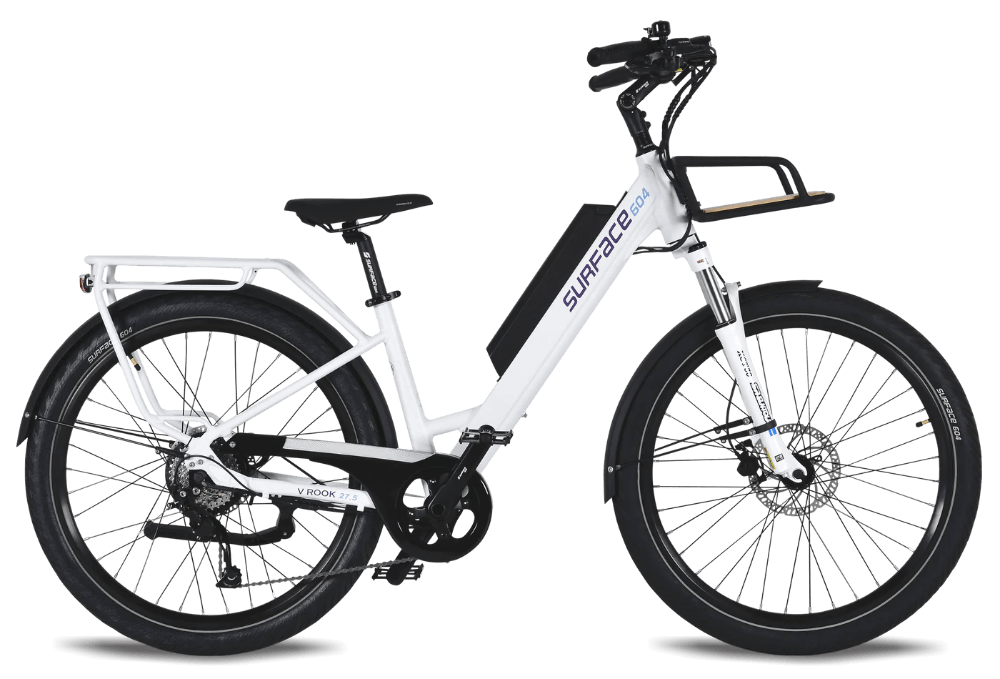

White electric bicycle with suspension fork and rear rack.
Electric bike with cargo rack

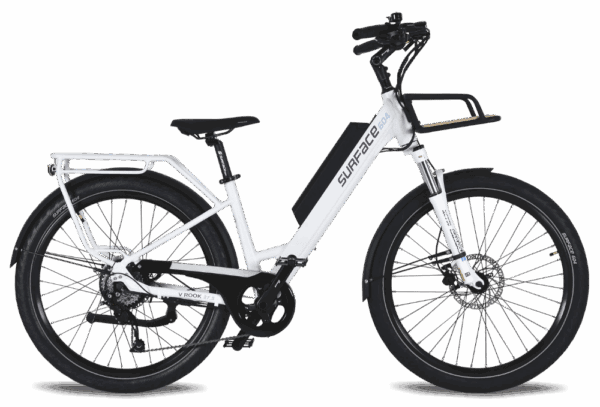

White electric bicycle, side view with cargo rack.

Surface 604 V Rook

$2,199.00

A feature-rich step-thru model with adjustable Suntour suspension, a long-range battery, and an included front rack with a removable wooden panel.

$

CONTACT US FOR AVAILABILITY

Call Us Today
Product Details: Drive System
Motor
500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
Drive Mode
Drop Out Torque Sensing Pedal Assist with a Throttle
Throttle
Thumb Push Activated Throttle
Torque
65Nm of Torque
Controller
SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
Motor Wire Harness
30Ah, can handle up to 120C current (upgraded)
Electronics
Battery
48V 20Ah / 960Wh Samsung lithium-ion 21700 cells
Battery Range
Upto 65mi (105km) with a 48V20Ah Battery
Battery Charge Time
3-4 Hours for a Full Charge from Empty
Display Type
SURFACE604 Color LCD Display with USB Jack
Lights
BÜCHEL “SHINY 120” front headlight / Rear LED light

Discover the V-Shape Rook, a versatile e-bike designed for urban commutes and weekend adventures. With a powerful 500W motor it reaches speeds of up to 28mph when unlocked. The 48V 20Ah battery offers up to 65 miles per charge. Features include a step-thru frame, adjustable stem, integrated lights, and hydraulic disc brakes for a smooth, safe ride.

Product Specs:
Frame & Suspension
Fork
SR SUNTOUR XCM30 – 27.5, 80mm with Axle Thru Hub
Frame Type
Straight steerer Headtube, Custom Reinforced Battery Mounts Internal Cable Routing, Post Mount Brakes
Frame Material
6061 Aluminum Alloy
Stem
SATORI Up2+, Adjustable
Handlebar
PROMAX Aluminum, 30mm Rise With 45° Backsweep, 710mm Wide
Components
Derailleur
SHIMANO ALIVIO 9-Speed
Cassette
SHIMANO 11-36T Cassette
Shift Levers
SHIMANO ALIVIO
Brakes
TEKTRO Auriga Hydraulic Disc Brakes Post Mount, with Motor Inhibitors
Crank Set
SAMOX 42T Front Sprocket
Rotors
180mm Front/Rear x 2.34mm Thick
Bottom Bracket
SAMOX Sealed Bottom Bracket
Pedals
WELLGO Platform, with Die Casting Body
Chain
KMC 9-Speed
Seat Post Diameter
30.4mm
Saddle
Selle Royal Gel Saddle “Essenza Plus” with elastomer (Relaxed). Adjustable up to 9 degrees.
Wheels/Tire
27.5″ X 2.4″ Custom S604 Tires With Puncture Protections 3mm “Green Shield” technology
